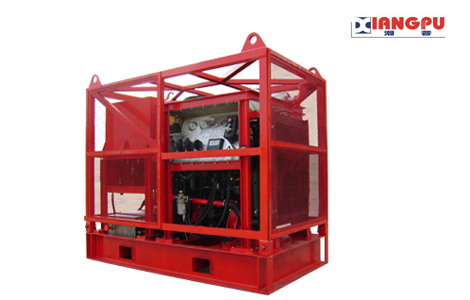

Ex-proof Electric Air Compressor
Engine displacement:1.6~34 Exhaust Pressure(kgf/cm²):7~24.6
| Xiangpu explosion-proof-leading technology industry benchmark |
Ingersoll Rand different specifications of electric air compressor can be equipped with Xiangpu XP-Aut or XP-Air (E) explosion-proof safety system.
1）XP-Supe explosion-proof system: effectively control various ignition sources of vehicle
- Electric circuit and element protection: housing treatment and surface temperature limitation to meet safety requirements in dangerous environment.
- Power supply: International-brand explosion-proof battery, high-quality housing and explosion-proof connectors realize high performance, safety and long life-time.
- Advanced overload sensing device: all-time monitor surface temperature of high-heat parts and automatically react once achieve threshold.
- Vehicle electricity isolation protection: monitoring isolation between electrical elements and the vehicle frame continuously, and automatic alarm in abnormal situation.
- Equip with explosion-proof instruments, switches, horns, lamps and lanterns.
2）XP-Air(E) explosion-proof system: prviode Zone 2 active protection for electric vehicle
- Detection and control: continuous monitor explosive gas density, and automatic alarm or shutdown once density reaches setting level. Emergency stop for manual operation.
- Compulsory self-check procedure: check electric components working condition and flammable gas density for safety start and operation.
- Temperature controlling device: continuously detect and control surface temperature of the high-heat parts for temperature limitation.
- Protect vehicle components from possible arc, spark and static.
-----------------------------------------------------------------------------------------
| Xiang pu-Yanmar explosion-proof diesel engine |
| No. | Item | Parameter |
| 1 | Type | 20~500 |
| 2 | Applicable hazard zone | Zone 1、Zone 2、Zone 21、Zone 22、Zone1/Zone21、Zone 2/Zone22 |
| 3 | Ex-proof Level | IIA IIB / IIIA IIIB |
| 4 | Temperature Class | T1(450℃)-T4（135℃） |
| 5 | Xiangpu Ex-proof Systems | XP-Aut, XP-Air(D), XP-Bie, XP-WP |
1）Application
- Zone 1 and Zone 2 explosive gas environment; Zone 21 and Zone 22 flammable dust environment; 'Bi-environment’ with both explosive gas and flammable dust.
- Hazardous circumstances with T1-T4 temperature grouping and IIA, IIB & IIC explosive gas grouping.
- Application industries, including petrochemical, petroleum, chemical, metallurgy, logistics, aerospace, painting, coating, war industry, etc.
- Loading, unloading, stacking and transporting area for hazardous material production and storage.
