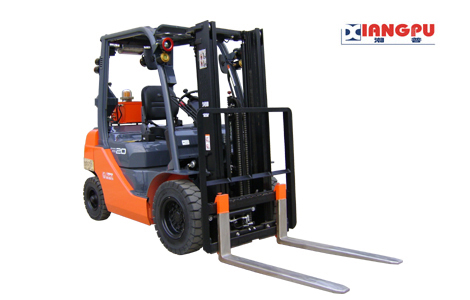

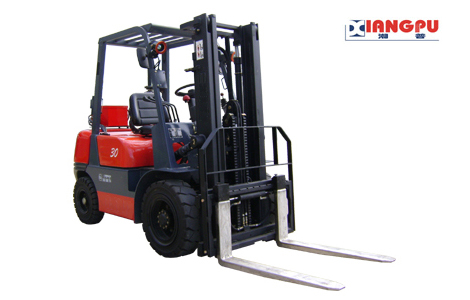

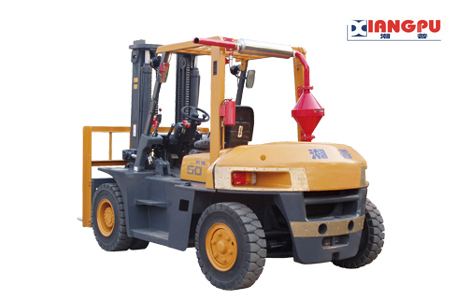

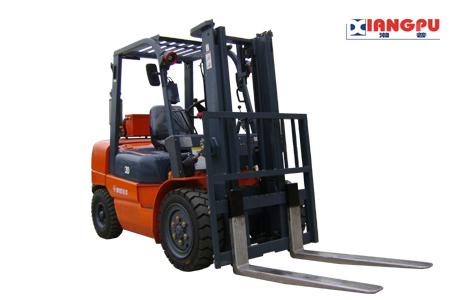

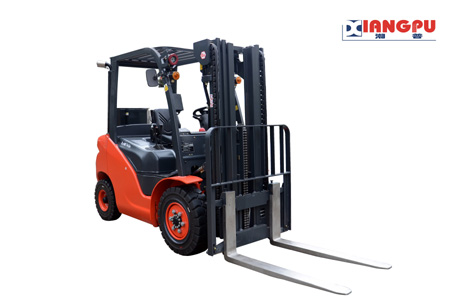

Ex-proof Diesel Counterbalance Forklift
Rated Load Weight(kg):1.0ton – 10.0ton
| Ex-proof Diesel Counterbalance Forklift |
1) Performance Parameter
| No. | Item | Parameter |
| 1 |
Rated Load Weight（kg） |
1.0ton – 10.0ton |
| 2 | Loading Center（mm） | 600 |
| 3 |
Applicable Hazard Zone |
Zone1/Zone21、Zone 2/Zone22 |
| 4 | Ex-proof Level | IIA IIB / IIIA IIIB |
| 5 |
Temperature Class |
T1(450℃)-T4（135℃） |
| 6 |
Xiangpu Ex-proof Systems |
XP-Aut, XP-Air(D), XP-Bie, XP-WP |
2） Application
- Zone 1 and Zone 2 explosive gas environment; Zone 21 and Zone 22 flammable dust environment; ’Bi-environment’ with both explosive gas and flammable dust.
- Hazardous circumstances with T1-T4 temperature grouping and IIA, IIB & IIC explosive gas grouping.
- Application industries, including petrochemical, petroleum, chemical, metallurgy, logistics,aerospace, painting, coating, war industry, etc.
- Loading, unloading, stacking and transporting area for hazardous material production and storage.
-------------------------------------------------------------------------------------------
|
Xiangpu Explosion-proof System |
The diesel counterbalance forklift can be equipped with Xiangpu XP-Aut or XP-Air (D) ex-proof safety system.
1) XP-Aut explosion-proof system: effectively control various ignition sources of forklift
- Stop engine combustion flame and spark discharge to external environment from diesel engine intake and exhaust chamber.
- Control vehicle surface temperature, engine water temperature and engine exhaust temperature.
- Explosion-proof measures on electrical components, such as starter, generator, battery, switches and instrumentation, in order to eliminate or control electric arc and spark.
- Antistatic drive belt, antistatic tires, non-metallic fan as well as explosion-proof treatment on fork surface to prevent impact sparks.
- Automatic control system provides protection on vehicle temperature, diesel engine oil pressure and engine running speed.
- Equip with explosion-proof speaker lamps and lanterns.
2) XP-Air(D) ex-proof system: provide Zone 2 active protection for diesel forklift
- Continuously monitor the forklift local atmosphere,cooling temperature, exhaust temperature,oil pressure and engine speed. provide an automatic alarm or shutdown, once monitoring values reach setting values.
- Intake shutdown valve, exhaust heat exchanger and temperature limitation devices are equipped. Truck forks are clad in stainless steel.
