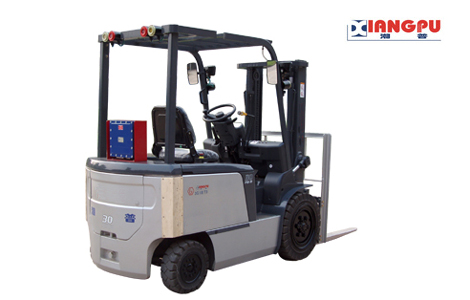

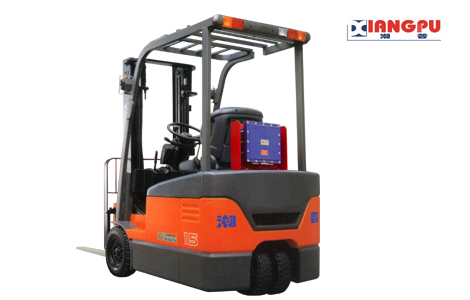

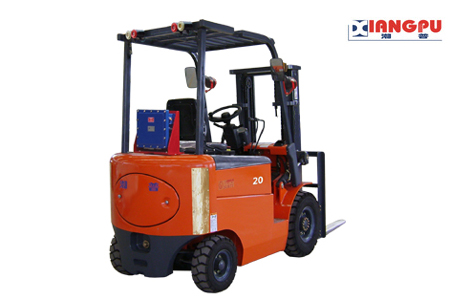

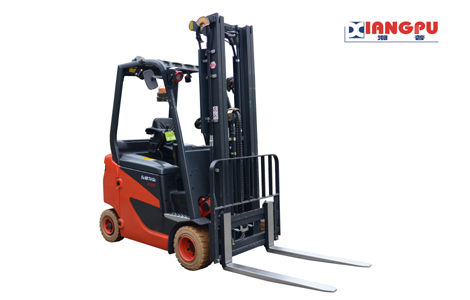

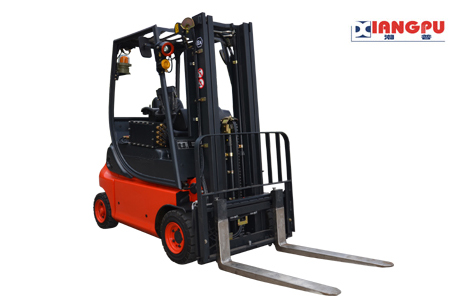

Ex-proof Electric Counterbalance Forklift
Rated Load Weight（kg）：1.0ton – 10.0ton
| Ex-proof Electric Counterbalance Forklift |
1) Performance Parameter
| No. | Item | Parameter |
| 1 |
Rated Load Weight（kg） |
1.0ton-10.0ton |
| 2 | Loading Center（mm） | 600 |
| 3 |
Applicable Hazard Zone |
Zone 1、Zone 2、Zone 21、Zone 22、Zone1/Zone21、Zone 2/Zone22 |
| 4 | Ex-proof Level | IIA IIB / IIIA IIIB |
| 5 |
Temperature Class |
T1(450℃)-T4（135℃） |
| 6 |
Xiangpu Ex-proof Systems |
XP-Supe, XP-Air(E), XP-Bie, XP-WP |
2) Application
- Zone 1 and Zone 2 explosive gas environment; Zone 21 and Zone 22 flammable dust environment; 'Bi-environment’ with both explosive gas and flammable dust.
- Hazardous circumstances with T1-T4 temperature grouping and IIA, IIB & IIC explosive gas grouping.
- Application industries, including petrochemical, petroleum, chemical, metallurgy, logistics, aerospace, painting, coating, war industry, etc.
- Loading, unloading, stacking and transporting area for hazardous material production and storage.
------------------------------------------------------------------------------------------
| Xiangpu Explosion-proof System |
Xiangpu XP-Supe and XP-Air(E) system provide safety protection to all electric vehicle with various types (Balance forklift, Sit-on Truck, Reach Stackers, Pallet Truck, Tractor,etc.)and different rated load (1000-5000kg).
1) XP-Supe explosion-proof system: effectively control various ignition sources of vehicle
- Electric circuit and element protection: housing treatment and surface temperature limitation to meet safety requirements in dangerous environment.
- Power supply: International-brand explosion-proof battery, high-quality housing and explosion-proof connectors realize high performance, safety and long life-time.
- Advanced overload sensing device: all-time monitor surface temperature of high-heat parts and automatically react once achieve threshold.
- Vehicle electricity isolation protection: monitoring isolation between electrical elements and the vehicle frame continuously, and automatic alarm in abnormal situation.
- Equip with explosion-proof instruments, switches, horns, lamps and lanterns.
2) XP-Air(E) explosion-proof system: prviode Zone 2 active protection for electric vehicle
- Detection and control: continuous monitor explosive gas density, and automatic alarm or shutdown once density reaches setting level. Emergency stop for manual operation.
- Compulsory self-check procedure: check electric components working condition and flammable gas density for safety start and operation.
- Temperature controlling device: continuously detect and control surface temperature of the high-heat parts for temperature limitation.
- Protect vehicle components from possible arc, spark and static.
|
500 |
| TCM叉车 —— 物流先驱 引领发展 |
同级别最高水平的装卸性能等机动性，搭载经济性与动力完美结合的低振动发动机，采用组合开关和安全带等舒适面和安全面都有提高。
采用了带有冷却扇的扭矩转换器具备了更高的耐久性的新性能和新机能，也实现了高经济性。
坚固的门架，宽阔的视野，根据人机学设置的操作系统，惊人的升降速度，环保的尾气排放等性能的提高和追求与环境共存的高性能
-----------------------------------------------------------------------------------------------
| 湘普防爆 —— 技术领先 行业标杆 |
TCM不同动力形式和不同规格（额定载重1000-10000kg）的平衡重式柴油叉车均可搭载湘普XP-Aut或XP-Air（D）防爆安全系统。
1） XP-Aut防爆系统：有效控制叉车各种引燃源
对柴油机进气和排气腔进行隔爆处理，阻止燃烧火焰和火花向外排出。
防爆冷却系统，控制正常表面温度、柴油机水温和排气温度。
起动机、发电机、电瓶、开关和仪表等电气元件采取防爆措施，以消除或控制电弧和电火花。
采用抗静电传动皮带、轮胎、非金属风扇以及对货叉工作面采取防碰撞火花措施。
自动控制和停车系统，对超温点和柴油机油压力、转速等进行自动传感及熄火停车保护。
配装防爆喇叭和灯具。
2） XP-Air(D)防爆系统：为在2区危险场所使用的柴油叉车提供主动防爆安全保护
连续监控叉车作业环境中爆炸性气体浓度，以及发动机水温、排温、机油压力和转速，并在其达到限定值时，自动报警或熄火停车。
配装进气截止阀、排气换热器等，控制主要发热部件表面温度，对货叉进行包覆处理。
-----------------------------------------------------------------------------------------------
| “湘普 - TCM”防爆柴油叉车 |
1） 性能参数
| 序号 | 项目 | 参数 |
| 1 | 额定起重量（kg） | 2000 2500 3000 …… |
| 2 | 载荷中心距（mm） | 500 |
| 3 | 适用危险区域 | 1区、2区、21区、22区、1区/21区、2区/22区 |
| 4 | 防爆级别 | IIA IIB IIC / IIIA IIIB |
| 5 | 温度组别 | T1(450℃)-T4（135℃） |
| 6 | 可搭载湘普防爆系统的“TCM”车型 | FD20、FD25、FD30等 |
*上表中额定起重量参数最大可达到10000kg；
有关基础叉车的详细信息可访问“TCM”公司官网：
http://www.tcmdc.com/products.asp
2) 适用场所
- 爆炸性气体环境1区、2区，可燃性粉尘21区、22区，或者两者同时存在的危险环境
- T1-T4温度组别的IIA、IIB、IIC类别危险气体和T1-T4温度组别的危险粉尘
- 石油、石化、化工、军工、航天、船舶、天然气、冶炼、制药、物流等行业
- 加工、生产可燃性危险物质的车间和装置，或储存可燃性危险物质的仓库、货场
|
